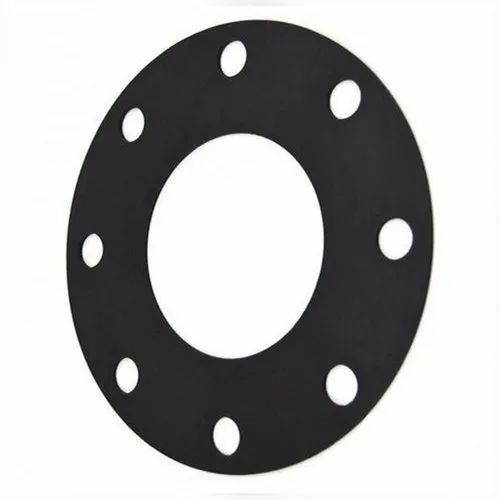

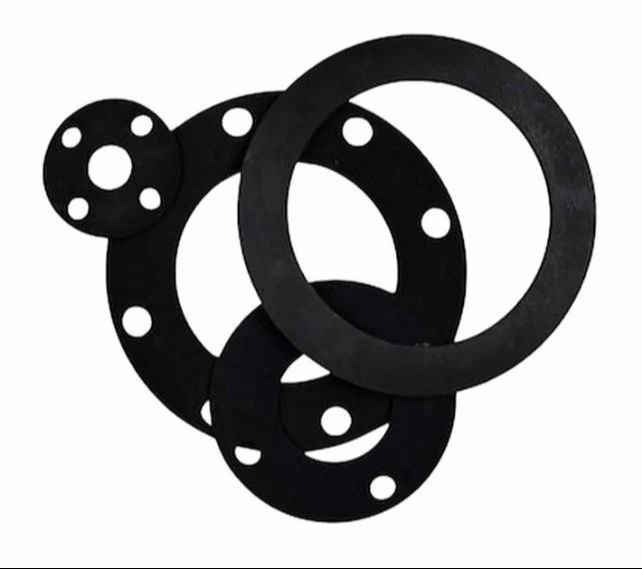

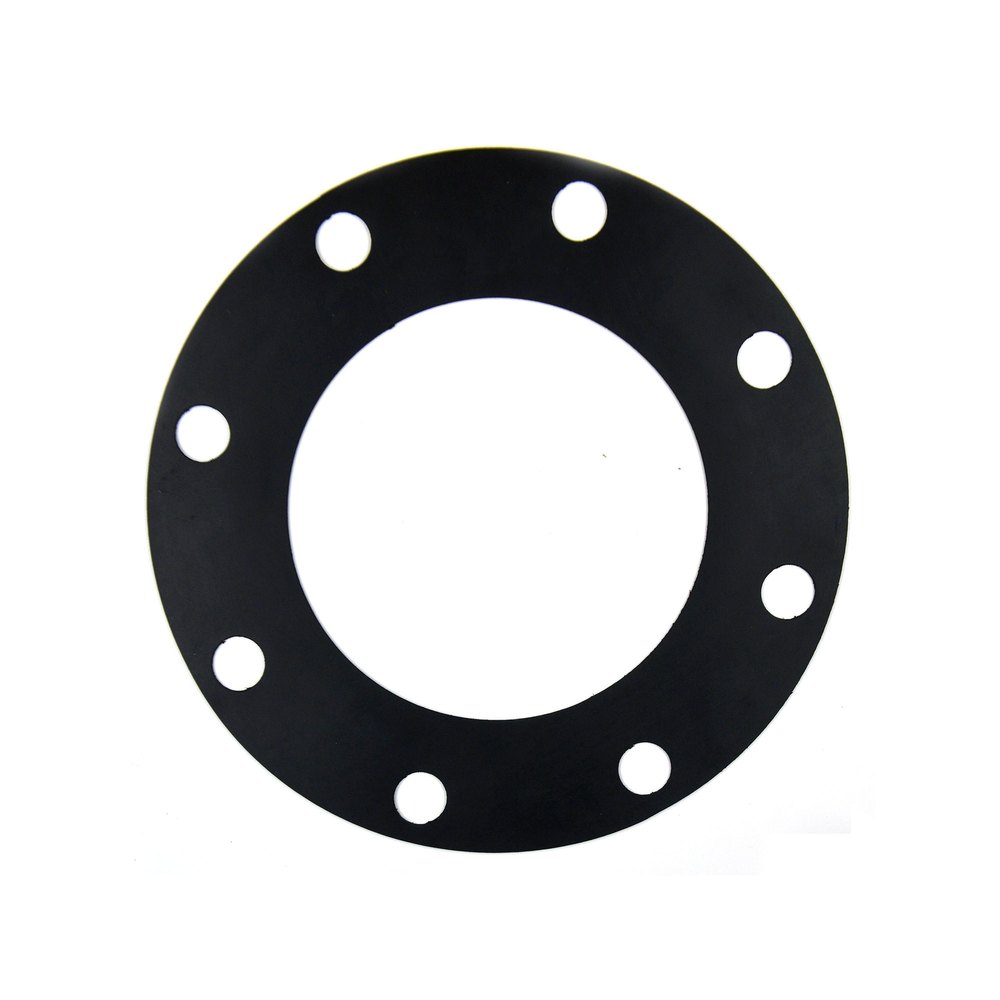

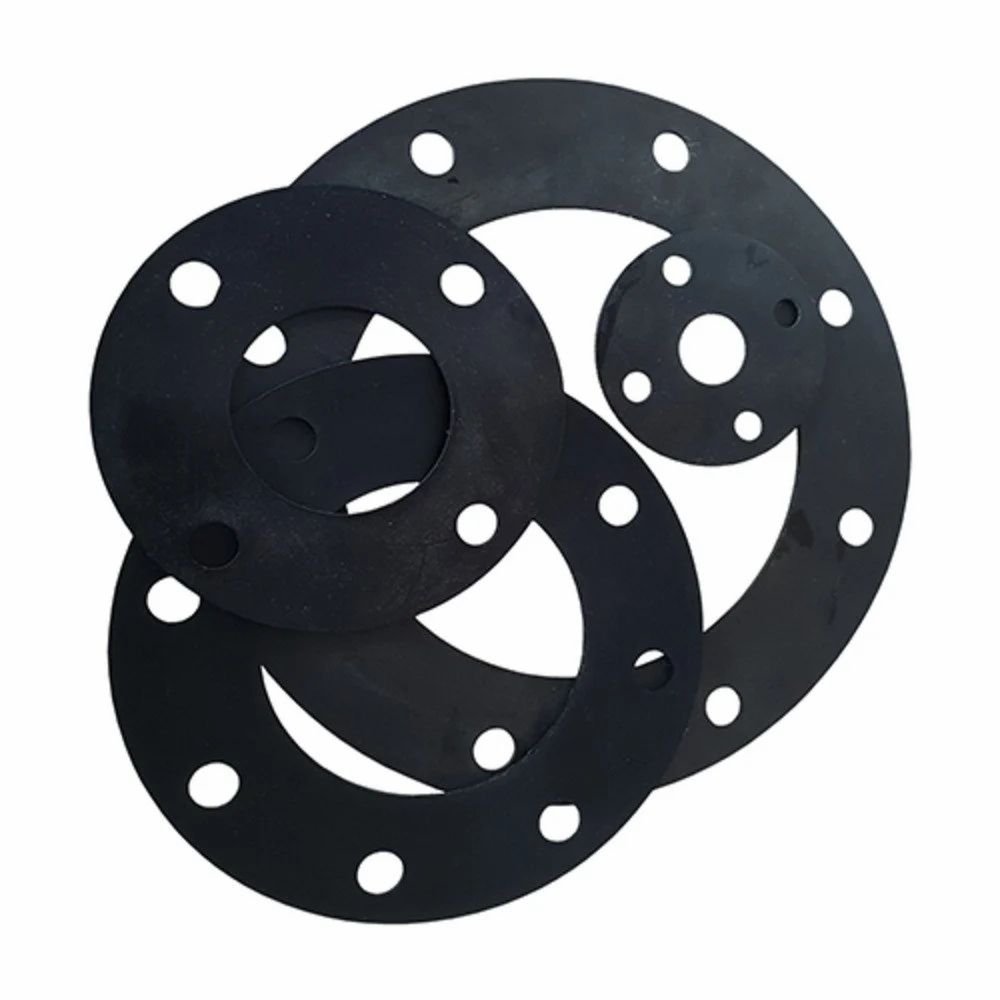

Flange Rubber Gasket

Enquire Now

Qualities Of Flange Gaskets

Color Color
Thickness 3-6 mm
Size 20mm to 3600 mm
Shape Round with holes
Surface Finish Smooth
Product Type Moulded Flange Gaskets
Diameter Upto 3600mm
Warranty 1 Year
Range PN 6, PN 10, PN 16, PN 25 and PN 40
Material EPDM, Neoprene, Nitrile, SBR, Natural
Grade Type 2 and Type 3

PN 6 - Gasket Dimensions

PN 6 – Gasket Dimensions

This chart covers gaskets for PN 6 designated flanges (DIN) to BS EN 1514-1:1967.

IBC Gasket (mm) Full Face Gasket (mm)
N-Bore OD ID OD ID Holes Dia. P.C.D.
15 44 22 80 22 4 11 55
20 54 28 90 28 4 11 65
25 64 35 100 35 4 11 75
32 76 43 120 43 4 14 90
40 86 49 130 49 4 14 100
50 96 61 140 61 4 14 110
65 116 77 160 77 4 14 130
80 132 90 190 90 4 18 150
100 152 115 210 115 4 18 170
125 182 141 240 141 8 18 200
150 207 169 265 169 8 18 225
200 226 220 320 220 8 18 280
250 317 274 375 274 12 18 335
300 373 325 440 325 12 22 395
350 423 368 490 368 12 22 445
400 473 420 540 420 16 22 495
450 528 470 595 470 16 22 550
500 578 520 645 520 20 22 600
600 679 620 755 620 20 26 705

PN 10 – Gasket Dimensions

This chart covers gaskets for PN 10 designated flanges (DIN) to BS EN 1514-1:1967.

IBC Gasket (mm) Full Face Gasket (mm)
N-Bore OD ID OD ID Holes Dia. P.C.D.
10 45 18 90 18 4 14 60
15 50 22 95 22 4 14 65
20 60 28 105 28 4 14 75
25 70 35 115 35 4 14 85
32 82 43 140 43 4 18 100
40 92 49 150 49 4 18 110
50 107 61 165 61 4 18 125
65 127 77 185 77 8 18 145
80 142 90 200 90 8 18 160
100 162 115 220 115 8 18 180
125 192 141 250 141 8 18 210
150 218 169 285 169 8 22 240
200 273 220 340 220 8 22 295
250 328 274 395 274 12 22 350
300 378 325 445 325 12 22 400
350 438 356 505 356 16 22 460
400 489 407 565 407 16 26 515
450 539 458 615 458 20 26 565
500 594 508 670 508 20 26 620
600 695 610 780 610 20 30 725
700 810 712 895 712 24 30 840
800 917 813 1015 813 24 33 950
900 1017 915 1115 915 28 33 1050
1000 1124 1016 1230 1016 28 36 1160
1100 1231 1120 1340 1120 32 39 1270
1200 1341 1220 1455 1220 32 39 1380
1400 1548 1420 1675 1420 36 42 1590
1500 1658 1520 1785 1520 36 42 1700
1600 1775 1620 1915 1620 40 48 1820
1800 1972 1820 2115 1820 44 48 2020
2000 2182 2020 2325 2020 48 48 2230

PN 16 – Gasket Dimensions

This chart covers gaskets for PN 16 designated flanges (DIN) to BS EN 1514-1:1967.

IBC Gasket (mm) Full Face Gasket (mm)
N-Bore OD ID OD ID Holes Dia. P.C.D.
10 45 18 90 18 4 14 60
15 50 22 95 22 4 14 65
20 60 28 105 28 4 14 75
25 70 35 115 35 4 14 85
32 82 43 140 43 4 18 100
40 92 49 150 49 4 18 110
50 107 61 165 61 4 18 125
65 127 77 185 77 8 18 145
80 142 90 200 90 8 18 160
100 162 115 220 115 8 18 180
125 192 141 250 141 8 18 210
150 218 169 285 169 8 22 240
200 273 220 340 220 12 22 295
250 329 274 405 274 12 26 355
300 384 325 460 325 12 26 410
350 444 356 520 356 16 26 470
400 492 407 580 407 16 30 525
450 555 458 640 458 20 30 585
500 617 508 715 508 20 33 650
600 734 610 840 610 20 36 770
700 804 712 910 712 24 36 840
800 911 813 1025 813 24 39 950
900 1011 915 1125 915 28 39 1050
1000 1128 1016 1255 1016 28 42 1170
1100 1228 1120 1355 1120 32 42 1270
1200 1342 1220 1485 1220 32 48 1390
1400 1542 1420 1685 1420 36 48 1590
1500 1654 1520 1820 1520 36 56 1710
1600 1764 1620 1930 1620 40 56 1820
1800 1964 1820 2130 1820 44 56 2020
2000 2168 2020 2345 2020 48 62 2230

PN 25 – Gasket Dimensions

This chart covers gaskets for PN 25 designated flanges (DIN) to BS EN 1514-1:1967.

IBC Gasket (mm) Full Face Gasket (mm)
N-Bore OD ID OD ID Holes Dia. P.C.D.
10 45 18 90 18 4 14 60
15 50 22 95 22 4 14 65
20 60 28 105 28 4 14 75
25 70 35 115 35 4 14 85
32 82 43 140 43 4 18 100
40 92 49 150 49 4 18 110
50 107 61 165 61 4 18 125
65 127 77 185 77 8 18 145
80 142 90 200 90 8 18 160
100 162 115 220 115 8 18 180
125 192 141 250 141 8 18 210
150 218 169 285 169 12 22 240
200 273 220 340 220 12 22 295
250 329 274 405 274 12 26 355
300 384 325 460 325 16 26 410
350 444 356 520 356 16 26 470
400 514 407 620 407 16 36 550
450 564 458 670 458 20 36 600
500 624 508 730 508 20 36 660
600 731 610 845 610 20 39 770
700 833 712 960 712 24 42 875
800 942 813 1085 813 24 48 990
900 1042 915 1185 915 28 48 1090
1000 1154 1016 1320 1016 28 56 1210
1100 1254 1120 1420 1120 32 56 1310
1200 1364 1220 1530 1220 32 56 1420
1400 1578 1420 1755 1420 36 62 1640
1500 1688 1520 1865 1520 36 62 1750
1600 1798 1620 1975 1620 40 62 1860
1800 2000 1820 2195 1820 44 70 2070
2000 2230 2020 2425 2020 48 70 2300

PN 40 – Gasket Dimensions

This chart covers gaskets for PN 40 designated flanges (DIN) to BS EN 1514-1:1967.

IBC Gasket (mm) Full Face Gasket (mm)
N-Bore OD ID OD ID Holes Dia. P.C.D.
10 45 18 90 18 4 14 60
15 50 22 95 22 4 14 65
20 60 28 105 28 4 14 75
25 70 35 115 35 4 14 85
32 82 43 140 43 4 18 100
40 92 49 150 49 4 18 110
50 107 61 165 61 4 18 125
65 127 77 185 77 8 18 145
80 142 90 200 90 8 18 160
100 168 115 235 115 8 22 190
125 194 141 270 141 8 26 220
150 224 169 300 169 8 26 250
200 290 220 375 220 12 30 320
250 352 274 450 274 12 33 385
300 417 325 515 325 16 33 450
350 474 356 580 356 16 36 510
400 546 407 660 407 16 39 585
450 571 458 685 458 20 39 610
500 628 508 755 508 20 42 670
600 747 610 890 610 20 48 795
700 852 710 995 710 24 48 900
800 974 820 1140 820 24 56 1030
900 1084 910 1250 910 28 56 1140
1000 1194 1010 1360 1010 28 56 1250
